**** The conversion of the replacement springs should be made by a specialist workshop.
A lowering with fork springs and an E1 shock absorber from Touratech Suspension. They achieve a sensible lowering by -50mm without a deterioration of the driving characteristics. Of course, some ground clearance is lost. The suspension components are perfectly tuned to the BMW G310GS and offer a significantly improved response and higher safety at the limit than the original suspension elements.
The facts:
- Touratech Suspension shock absorber in gas/oil emulsion design
- Adjustable spring preload
- 50 click adjustable rebound damping
- Stepless progressive black coated spring
- Piston rod made of chrome-molybdenum steel, ø 16 mm
- Damper piston ø 36 mm
- Generously dimensioned damper tube
- Constant damping even under hard use
- High-quality finish
- Fork springs steplessly progressive

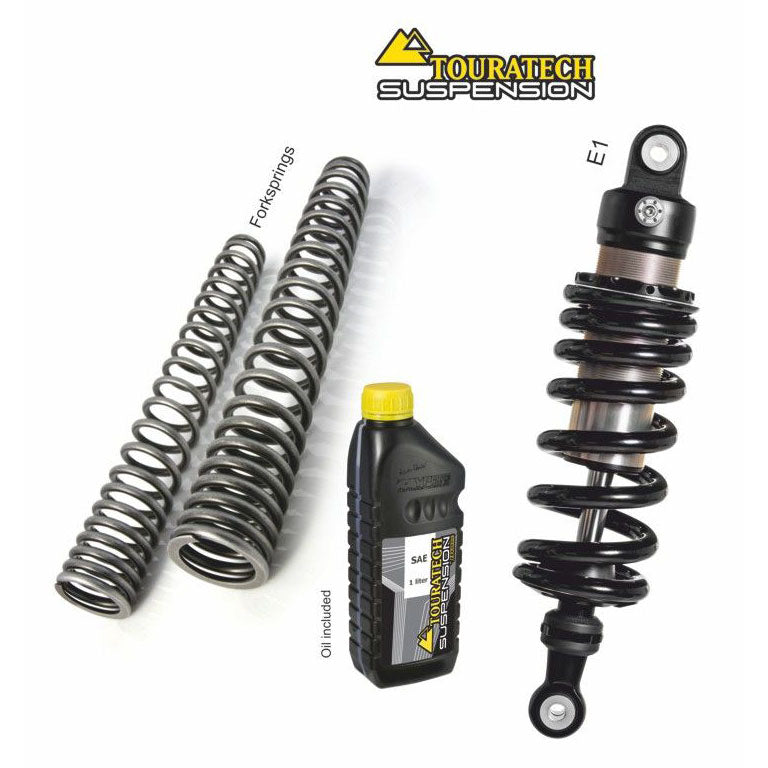

Delivery includes:
- Ready-to-install E1 shock absorber -50mm
- Adjustment tool
- fork springs -50mm
- including detailed instructions.
- matching fork oil.
- Paste to improve the lubricity of the dip tubes.
- installation instructions,
