DL2 DRIVING LIGHT PODS W/ DATADIM TECHNOLOGY

DENALI DL2 LED Driving Lights

Compact size. Serious light output.

The DENALI DL2 LED Driving Lights deliver powerful auxiliary lighting in the smallest housing in the DL Series. Producing up to 3,400 raw lumens per pair, the DL2 combines a wide visibility-focused beam with rugged, waterproof construction for a compact lighting upgrade built for everyday riding and adventure travel.

Designed around DENALI’s single-piece TIR optics and HiDrive LED technology, the DL2 provides excellent visibility without adding bulky lighting to your motorcycle.

3,400 Lumens. Compact Package.

Don't let the small housing fool you.

Each DL2 pod uses two high-output CREE XPL2 LEDs to produce 1,700 raw lumens, for a combined output of 3,400 lumens per pair.

Lighting Performance:

• 1,700 raw lumens per pod

• 3,400 raw lumens per pair

• 6000K colour temperature

• 130 ft (40 m) beam distance per pod

• Up to 173 ft (53 m) beam distance per pair

• Wide visibility-focused beam pattern

More usable light from a compact 2" x 3" housing.

Designed to See and Be Seen

The DL2 features DENALI's dedicated visibility beam, engineered to provide a wide flood of light at night while making your motorcycle more noticeable to other road users during the day.

DENALI's oversized TIR optics efficiently direct the LED output to provide useful width and distance without requiring a large reflector housing.

The result is improved illumination ahead and increased motorcycle visibility throughout the ride.

DataDim™ Dimming Technology

Control your lighting the way you want it.

DENALI's 3-wire DataDim™ technology allows the DL2 to integrate with compatible DENALI lighting harnesses and controllers.

Compatible control options include:

• DENALI DataDim™

• DENALI DialDim™

• DENALI CANsmart™ Controllers

• Standard DENALI lighting harnesses

This makes it easy to build anything from a simple single-intensity setup to a fully integrated lighting system.

Built for Adventure

The DL2 is designed to handle vibration, water, dust, and demanding riding conditions.

Rugged Construction:

• DrySeal™ sealed-beam construction

• IP68 and IP69K waterproof rating

• Submersible design

• 4 mm powder-coated steel mounting brackets

• Durable aluminum heatsink

• Polycarbonate lens with UV-resistant hard coating

• Tested to withstand 21 Grms of vibration

Built for motorcycles that don't always stay on smooth roads.

ECE-Compliant Driving Beam

The DL2's hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union.

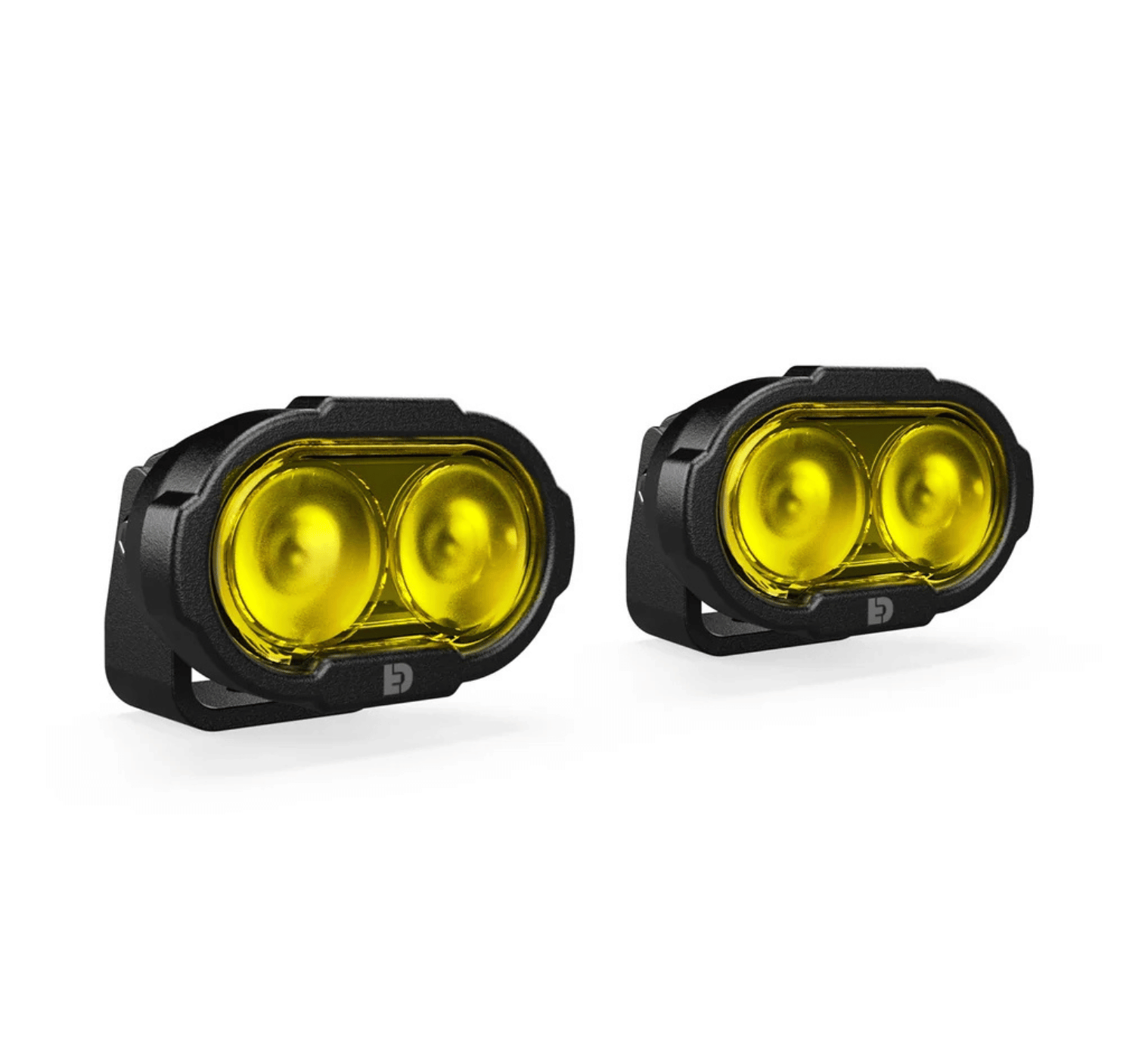

Note: Yellow and amber lens versions are not ECE compliant for street-legal high-beam use.

Always verify local lighting regulations before use on public roads.

Technical Specifications

Single Pod | Pair

• LEDs: CREE XPL2 HD, 8W each

• Power: 16W | 32W

• Current Draw: 1.3A | 2.7A

• Raw Lumens: 1,700 | 3,400

• Beam Distance: 130 ft (40 m) | 173 ft (53 m)

• Beam Width: 85 ft (26 m) | 113 ft (35 m)

• Colour Temperature: 6000K

• Operating Voltage: 9–32 VDC

• Connector: DataDim-compatible 3-wire DT

• Pod Dimensions: 2" x 3" x 2" deep

• Weight: 0.8 lb | 1.6 lb

• Waterproof Rating: IP68 & IP69K

• EMC Compliance: R10, CISPR 25, CE, UKCA

Choose Your Wiring Setup

The DL2 can be paired with several DENALI wiring and control options depending on the level of integration you want.

Available Options:

• Standard Powersports Harness — Simple single-intensity installation with a compact waterproof switch

• Standard Automotive Harness — Longer wiring with an illuminated flush-mount rocker switch

• Premium Powersports Harness — Premium over-molded wiring with an illuminated handlebar-mounted switch

• DataDim™ Module — Adds high/low intensity functionality synchronized with your motorcycle's high beam

• DialDim™ Lighting Controller — Advanced independent control of two lighting circuits with dimming and additional programmable functions

• CANsmart™ Controller — Vehicle-specific integration available for compatible motorcycles

Choose the setup that matches your motorcycle and the level of lighting control you need.

What's Included

Single Light Pod:

• (1x) DENALI DL2 light pod

• (1x) Mounting hardware set

• (1x) 3-wire pigtail

Pair of Light Pods:

• (2x) DENALI DL2 light pods

• (2x) Mounting hardware sets

• (2x) 3-wire pigtails

Small Light. Big Upgrade.

For riders who want more light and better visibility without oversized auxiliary lights, the DENALI DL2 delivers a strong balance of compact dimensions, useful beam performance, and rugged construction.

Add them to an adventure bike, touring motorcycle, or daily ride for more confidence when daylight disappears.

See more. Be seen. Keep riding.
