DE-DNL-D3-050   |    DNL.D3.050
Denali Electronics

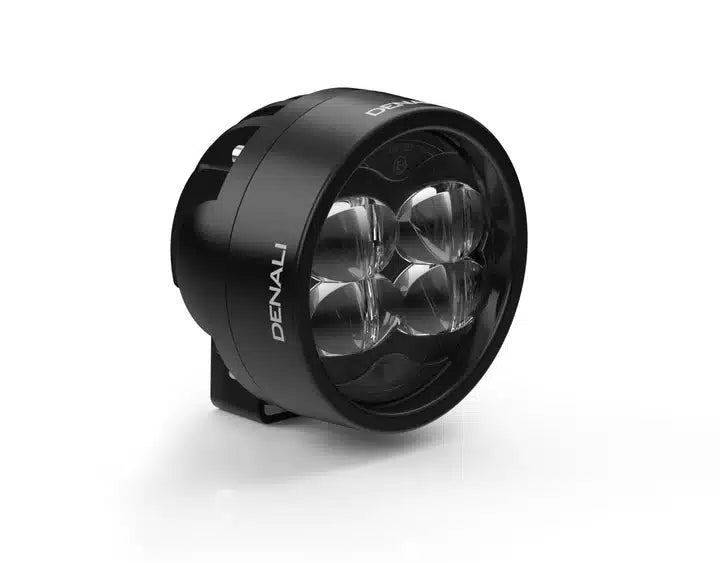

DENALI D3 LED Driving Light Pod with DataDim Technology
Color Black
In stock
$289.00 $289.00
Shipping calculated at checkout.
Installation Guide
Description

Features

Best in class street-legal fog beam (SAE/DOT & ECE certified)
High-Intensity Series Cree LEDs outputting 2800 lumens per pod
DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
Impact PC™ Polycarbonate bezels won’t crack, fade or corrode like traditional aluminum bezels.
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
Low profile mounting bracket with stainless steel hardware included
Amber & selective yellow lenses available

Beam Performance (pair)

Beam Distance (at 1 lux): 450 feet (137 meters)
Beam Width (at 1 lux): 300 feet (91 meters)

Specs (single pod)

Pod Size: 3.5″ (90mm) Round x 3.0″ (76mm) Deep
LED: (4x) 11 Watt Cree XP-P LEDs
Power Draw: 40 Watts (3.3 Amps)
Lumens: 2800
DataDim™ Compatible: Yes
Operating Voltage: 9-32V DC
IP67 Waterproof & Submersible
Fog Lens Certifications: SAE/DOT J583 & ECE R19

What’s Included?

Please note that the light pods, colored lens kits, and wiring harnesses are packaged separately.

Light Pod Box Contents – DNL.D3.051

(1x) D3 LED Fog Light Pod
(1x) Hinge Mounts with M8 Stainless Steel Hardware
(1x) Wiring Pigtail
